The Panasonic DC-S1R is a premium, high resolution full-frame mirrorless camera that offers advanced feature sets for stills and video. Key features include:
47.3MP full-frame MOS sensor and Venus Engine
UHD 4K60p internal recording with 4:2:0 8-bit color
Five-axis sensor-shift image stabilization
Accepts L-mount lenses
47.3MP Full-Frame MOS Sensor and Venus Engine. The Panasonic DC-S1R’s 47.3MP MOS sensor is supported by an updated Venus Engine for impressive image quality, a fast 9 fps shooting rate, great low-light performance, and an expanded 100-51,200 ISO range. The sensor and processor combine to enhance color reproduction and suppress noise levels throughout the camera’s sensitivity range.

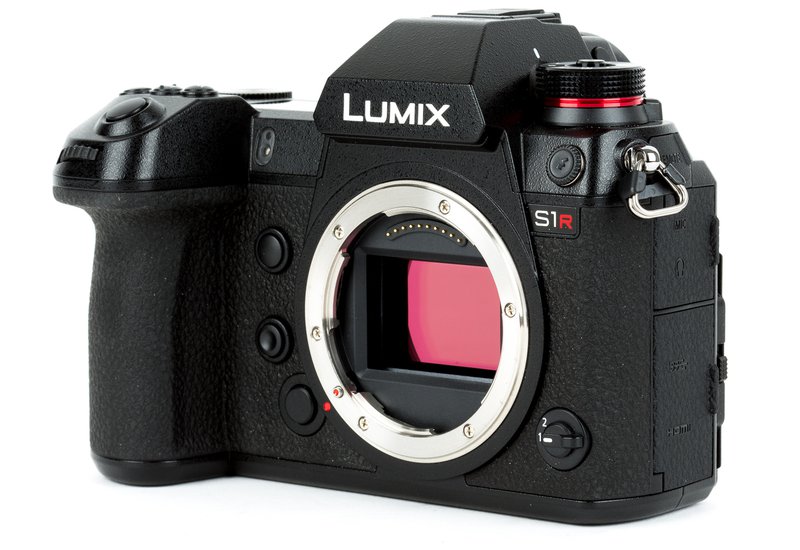

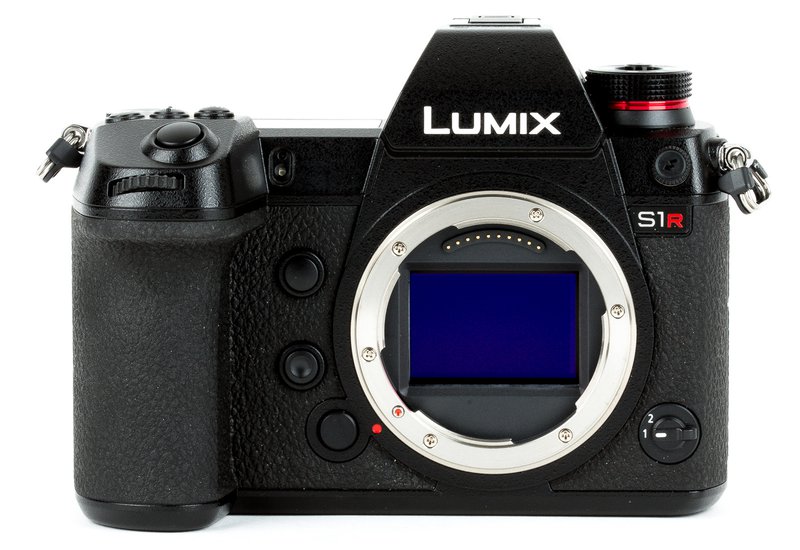

L-Mount Alliance. This wide-diameter lens mount is a joint collaboration between Leica, Panasonic, and Sigma that’s focused on a line of premium cameras & lenses in a mirrorless format. At 51.6mm mount diameter and just 20mm flange distance, the L-mount is well-suited for fast-aperture full-frame optics with compact dimensions.

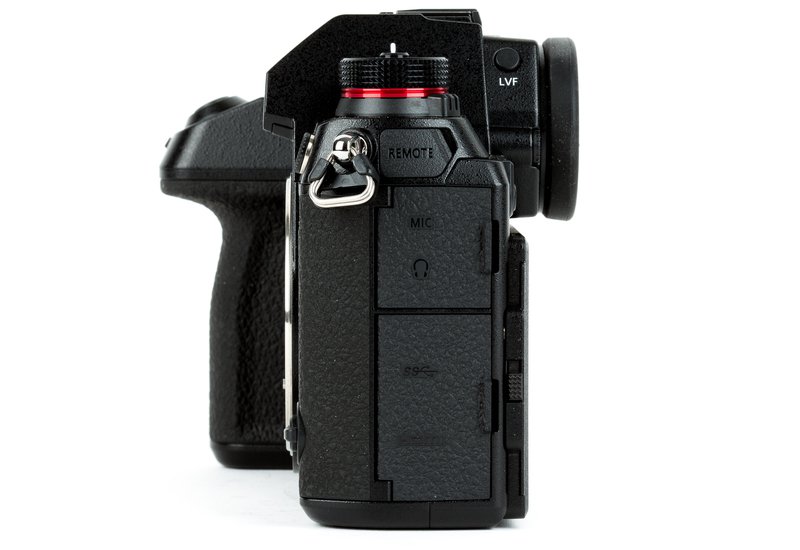

4K UHD and Full HD Video. The Lumix S1R offers up to UHD4K60p internal recording with 4:2:0 8-bit color in MP4 format with a 1.09x crop (via pixel binning). It’s also capable of Full HD 1080p capture at up to 180 fps. It features clean HDMI output to an external recorder, though without the increase in color you get in the S1. There’s a built-in stereo mic for quick audio capture, and there are also 3.5mm mic and headphone jacks for advanced audio recording and monitoring needs. Please note that for 4K capture, you must use an SD memory card that’s UHS-I Class 3 or faster, or an XQD-format or Type B CFexpress memory card.
6K and 4K Photo. The DC-S1R gives you three still-shooting modes for recording continuous 3:2 or 4:3 8MP stills at a 60 or 30 fps shooting rate or 18MP stills at a 30 fps shooting rate. Burst mode lets you continuously record, Pre-Burst mode records images one second before and one second after you press the shutter button so you get 60 frames to choose from, while Burst (S/S) mode lets you select the frame you want from recorded video footage. This camera can also record stills in 65:24 and 2:1 panoramic formats.
Light-Speed Autofocus. This contrast-based autofocus system uses Panasonic’s “Depth from Defocus” technology to provide extremely fast speeds. “Advanced AI technology” assists in subject tracking of fast-moving subjects, while the same AI system is used when shooting portraits for face / eye detection. And if you’re shooting in low light, the DFDautofocus system works down to -6 EV.
Sensor-Shift Image Stabilization. This system uses five-axis sensor-shift stabilization for up to 5.5-stops of correction. Mate the camera with a Panasonic lens that features Dual IS 2 (a lens-based two-axis stabilization) to compensate for roughly 6-stops of camera shake, giving your hand-held shots utmost sharpness. Another unique feature of the S1R enabled by the in-camera sensor-shift stabilizer is its High Resolution mode which captures and compiles 8 separate exposures into a single 187MP RAW or JPEG file at 16736 × 11168 pixel resolution (subject must be static and camera locked down on a tripod).
Built-In Electronic Viewfinder. The 5.76m-dot OLEDintegrated electronic viewfinder offers 100% coverage and encompasses the entire Adobe RGB color space, allowing extremely faithful color reproduction. It offers 0.78x configurable viewing magnification and a smooth 60 fps or 120 fps changeable refresh rate, 0.005-second lag, and 10,000:1 contrast ratio.

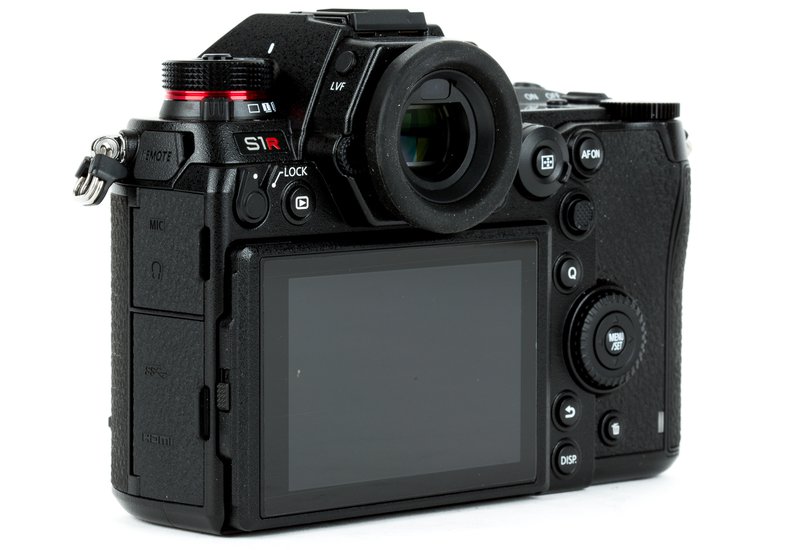

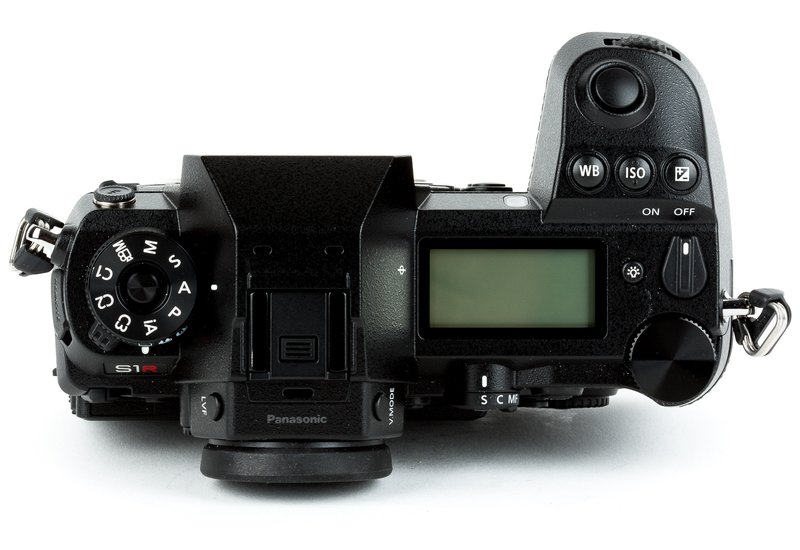

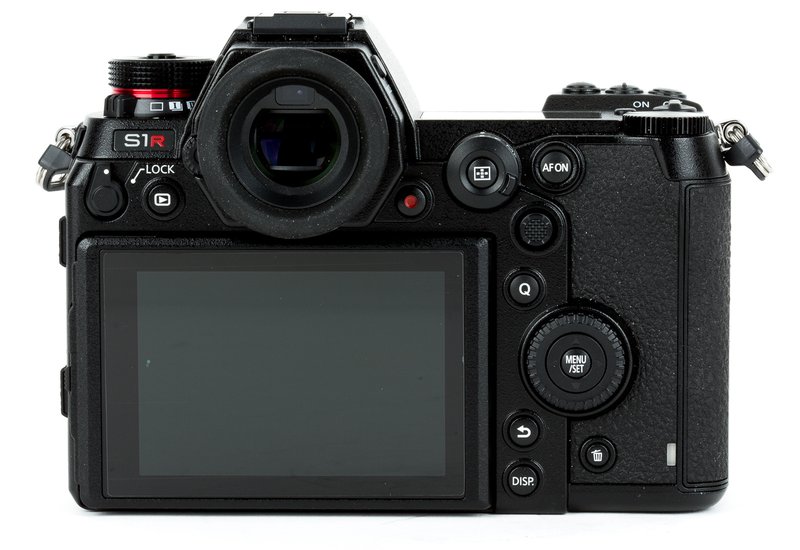

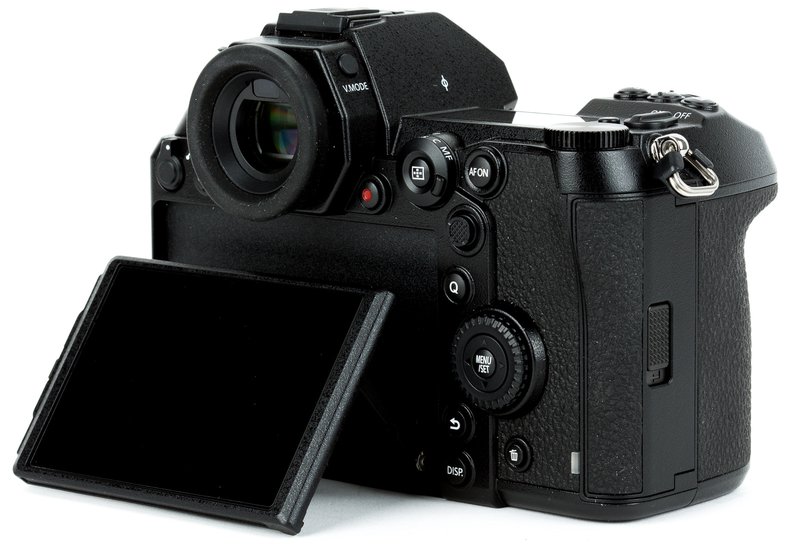

Rear and Top LCDs. You can use the 2.1m-dot 3.2-inch rear touchscreen LCD for image composition, review, playback, and menu navigation. Its triaxial tilting design lets you work from low and high angles, even when you’re shooting in vertical orientation. Live View Boost mode was designed for composing images in low light, while Night Mode also helps you work in the dark by lowering the backlight intensity. A separate status LCD on top of the camera lets you quickly review shooting settings, even when the camera’s powered off.

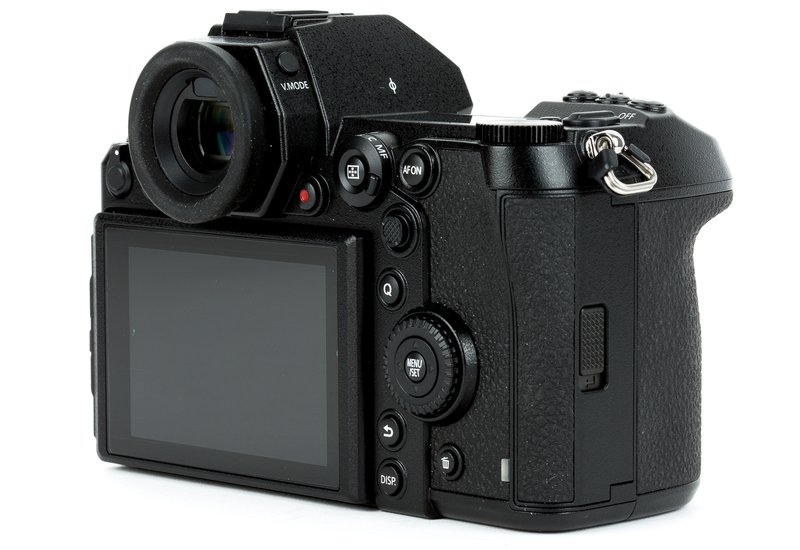

Manual Controls. There are physical dials/rings for quick manual adjustment of shutter speed, aperture, focus, and exposure compensation. An eight-way joystick provides simple, fast focus point selection and menu navigation, and there are multiple programmable buttons that can be customized to suit your needs.

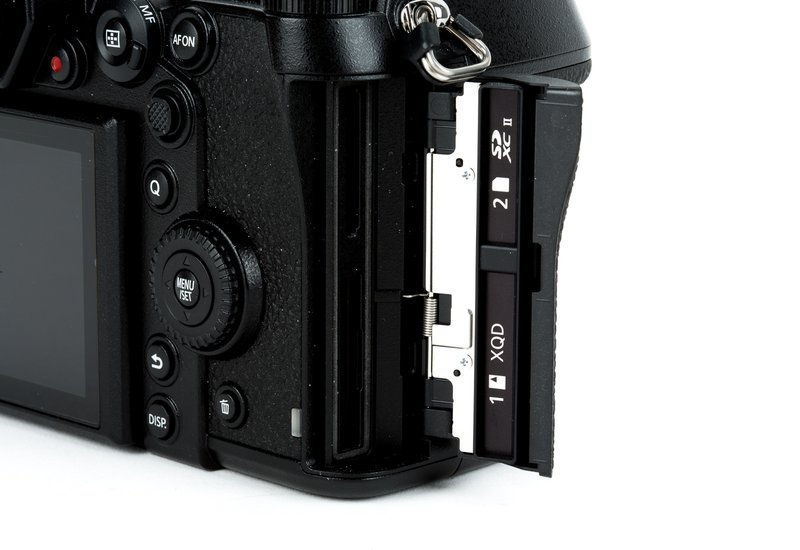

Other Notable Features. The built-in Wi-Fi and Bluetooth provide wireless control and viewing options via the free Lumix Sync App. Images are recorded to SDHC/XC memory cards (remember, UHS-I Class 3 or faster for 4K video) or XQD or CFexpress Type B, and the rechargeable DMW-BLJ31 battery is rated for approximately 360-380 shots per charge when using the rear monitor, 340-360 shots per charge when using the EVF, and 1100-1150 shots per charge when Power Save LVF mode is on.
Aspect Ratio
Still: 1:1, 2:1, 3:2, 4:3, 16:9, 65:24
Video: 16:9
Audio Recording
Built-In Mic: With Video (Stereo)
Optional External Mic: With Video (Stereo)
Autofocus Points
Contrast Detection: 225
Battery
1x DMW-BLJ31 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 3100 mAh
Brand
Panasonic
Built-in Flash
No
Camera Type
Mirrorless
Compensation
-5 EV to +5 EV (in 1/3 EV Steps)
Connectivity

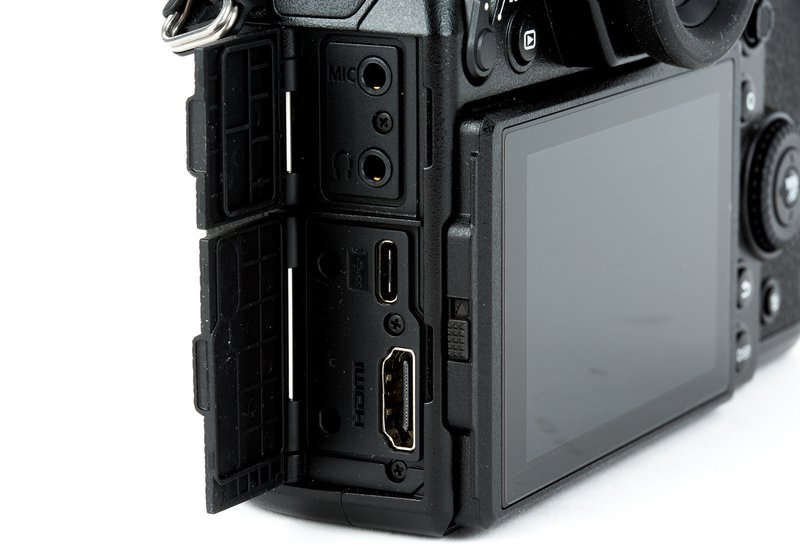

1/8" Headphone, 1/8" Microphone, 2.5mm Sub-mini (2-Ring), HDMI A (Full Size), USB 3.0, USB Type-C, X-Sync Socket
Continuous Shooting
Up to 9 fps at 46.7 MP for up to 40 Exposures (Raw Format)
Up to 9 fps at 46.7 MP for up to 50 Exposures (JPEGFormat)
Dedicated Flash System
TTL
Dimensions
W x H x D: 5.9″ × 4.3″ × 3.8″
Diopter Adjustment
-4.0 to +2.0m
Dust Reduction System
Yes
Exposure Modes
Aperture Priority, Manual, Program, Shutter Priority
External Flash Connection
Hot Shoe, PC Terminal
File Format
Still Images: JPEG, RAW
Movies: AVCHD, AVC/H.264, MP4
Audio: AAC, Dolby Digital 2ch, Linear PCM
Flash Compensation
-3 EV to +3 EV (in 1/3 EV steps)
Flash Modes
Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction
Focus Type
Auto & Manual Focus
Focusing Method
Continuous-Servo AF, Manual Focus, Single-servo AF
ISO Range
Auto, 100 to 25600 (Extended Mode: 50 to 51200)
Image Stabilization
Sensor-Shift, 5-Way
Interval Recording
Yes
Item Type
Camera
LCD
3.2" Rear Touchscreen Tilting LCD (2,100,000)
LCD Coverage
100%
Maximum Resolution
46.7 MP: 8368 × 5584
Maximum Sync Speed
Mechanical Shutter: 1 / 320 Second
Memory Type
XQD, SD, SDHC, SDXC
Metering Modes
Center-Weighted Average Metering, Multiple, Spot Metering, Highlight Weighted
Metering Range
EV 0.0 to EV 18.0
Mount
L Mount
Pixels
Actual: 50.44 Megapixel
Effective: 47.3 Megapixel
Self Timer
2, 10 Seconds
Sensor Dimensions
36 × 24mm
Sensor Size
Full Frame
Sensor Type
MOS
Shutter Modes
Type: Mechanical
Speed: 1/8000 to 60 Second
Type: Mechanical
Speed: 0 to 30 Minute in Bulb Mode
Type: Electronic & Mechanical
Speed: 1/2000 to 60 Second
Type: Electronic & Mechanical
Speed: 0 to 30 Minute in Bulb Mode
Type: Electronic
Speed: 1/16000 to 60 Second, Bulb Mode
Type: Electronic
Speed: 1/16000 to 1/25 Second in Movie Mode
Video Formats
3840 × 2160p at 59.94 fps (150 Mb/s MP4 via H.264)
3840 × 2160p at 23.98/29.97 fps (100 Mb/s MP4 via H.264)
1920 × 1080p at 59.94 fps (28 Mb/s MP4 via H.264)
1920 × 1080p at 29.97 fps (20 Mb/s MP4 via H.264)
1920 × 1080p at 59.94 fps (28 Mb/s AVCHD)
1920 × 1080p at 23.98 fps (24 Mb/s AVCHD)
1920 × 1080i at 59.94 fps (24, 17 Mb/s AVCHD)
Video Recording
Yes, NTSC
Viewfinder Coverage
100%
Viewfinder Eye Point
21mm
Viewfinder Magnification
Approx. 0.78x
Viewfinder Resolution
5,760,000 Dot
Viewfinder Type
Electronic
Weight
2.24 lbs.
White Balance
Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set
Wi-Fi
Yes
